SYSTEM
- RF Carrier Frequency Range: 470–937.5 MHz, varies by region (See Frequency Range and Output Power table)
- Working Range: 100 m ( 328 ft)
- Note: Actual range depends on RF signal absorption, reflection and interference.Note: Actual range depends on RF signal absorption, reflection and interference.
- RF Tuning Step Size: 25 kHz, varies by region
- Image Rejection: >70 dB, typical
- RF Sensitivity: -97 dBm at 10-5 BER
- Latency: <2.9 ms
- Audio Frequency Response
QLXD1 | 20 – 20 kHz (±1 dB) |
QLXD2 | Note: Dependent on microphone type |
- Audio Dynamic Range (System Gain @ +10): >120 dB, A-weighted, typical
- Total Harmonic Distortion (−12 dBFS input, System Gain @ +10): <0.1%
- System Audio Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the 6.35 mm (1/4-inch) output.
- Operating Temperature Range: -18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this range.
- Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.
QLXD | SB900B | alkaline |
|---|
| 1/10 mW | 1/10 mW |
|---|
470 to 865 | >8:55 hours | 8 hours |
902 to 928 | >7:58 hours | >6 hours |
174 to 216 | >8:55 hours | >8:30 hours |
1240 to 1800 | >7:30 hours | >6 hours |
The values in this table are typical of fresh, high quality batteries. Battery runtime varies depending on the manufacturer and age of the battery.

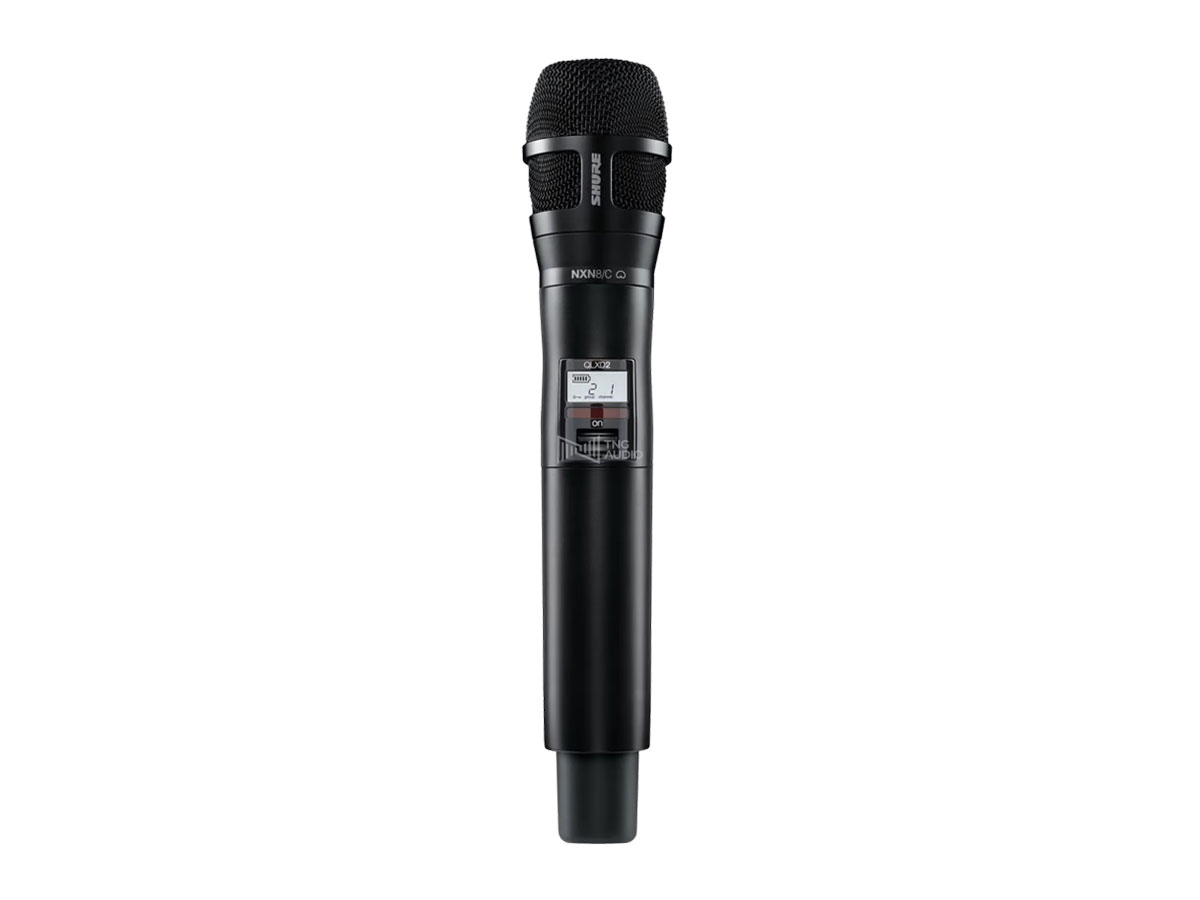

QLXD2
- Mic Offset Range: 0 to 21 dB (in 3 dB steps)
- Battery Type: Shure SB900B Rechargeable Li-Ion or AA batteries 1.5 V
- Dimensions: 269 mm x 51 mm (10.6 in. x 2.0 in.) L x Dia.
- Weight: 307 g (12.1 oz.), without batteries
- Housing: Machined aluminum
Audio Input
- Configuration: Unbalanced
- Maximum Input Level (1 kHz at 1% THD): 145 dB SPL (SM58), typical
Note: Dependent on microphone type
RF Output
- Antenna Type: Integrated Single Band Helical
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure proprietary digital
- Power:1 mW or 10 mW
